Wednesday, July 28, 2010

WCF RIA SERVICES v1.0 Samples - part I

In February and March I wrote five good posts with samples about WCF RIA Services Beta. I have refreshed all these samples to work with WCF RIA Services v1.0. I have tested almost all new WCF RIA Services RC1/RC2/v1 features, too. In the near future I’ll write three posts about WCF RIA Services v1.0 features and various extensions. Today I’ll present first part of  it.

I sign changes in my samples:

  • migration changes & new features
  • migration changes

Let’s start …

1. BusinessApplicationDemo

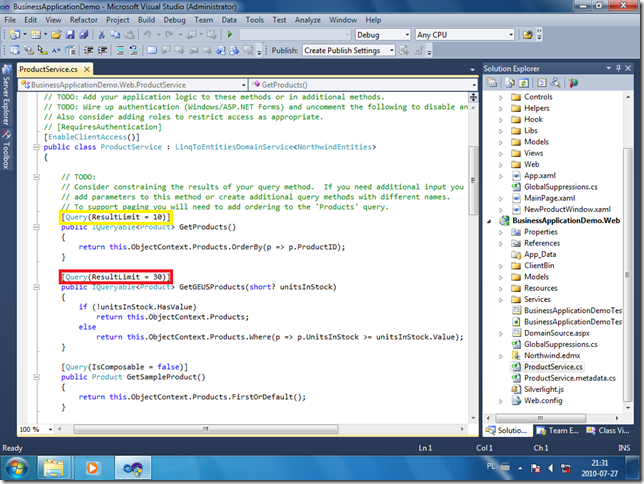

If a large number of entities can be returned, consider paging on the client by throttling the results. Now, you can use the ResultLimit property on the QueryAttribute.

01_QueryLimit_01 - mod

Deepesh Mohnani has written a great post how to use server throttling with DomainDataSource.

01_QueryLimit_02 - mod

BTW, there are many changes in DomainDataSource. It no longer blocks loads when another load is pending. SubmitChanges on DomainDataSource no longer automatically reloads data. Filter/sort/group descriptors support binding. There is ICommand support for Load/SubmitChanges/RejectChanges. For more details, read breaking changes.

In the latest RIA Services bits, the total server count of the resulting query is not requested by default for paging scenarios. To explicitly request that the Count method is called, you can set the IncludeTotalCount property on the EntityQuery to true. Deepesh Mohnani has a great post about it here.

01_QueryLimit_05 - mod

DomainDataSource will not request for count in non-paging scenarios. As soon as a page size is specified, DomainDataSource will set the IncludeTotalCount property on the EntityQuery for you. By subscribing to the LoadingData event on the DomainDataSource you can override this behavior.

01_QueryLimit_03 - mod

To reduce the load on the middle tier and database you can use the OutputCacheAttribute attribute for output caching. Now, clients can cache the response because communication between the client and server has been changed from SOAP with binary encoding (only POST) to REST with binary encoding (GET or POST).

02_OutputCache - mod

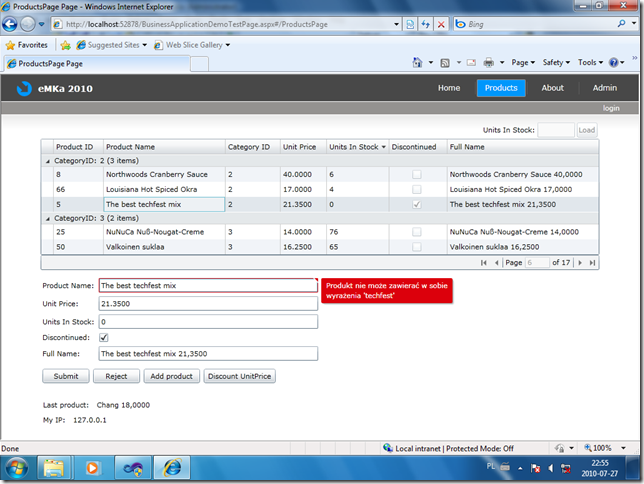

In the current release, validation rules are enforced by raising events through the INotifyDataErrorInfo interface.

When you create a custom validation class or attribute, you must now pass to the Silverlight application the name or names of the members that failed validation (with the ValidationResult).

04_SyncValidation_01 - mod 04_SyncValidation_02 - mod 04_SyncValidation_03

BTW, you can write custom authorization rules, just like validation. There’s extensible AuthorizationContext. See CustomAuthorization (ala CustomValidation) attribute written by Nikhil Kothari.

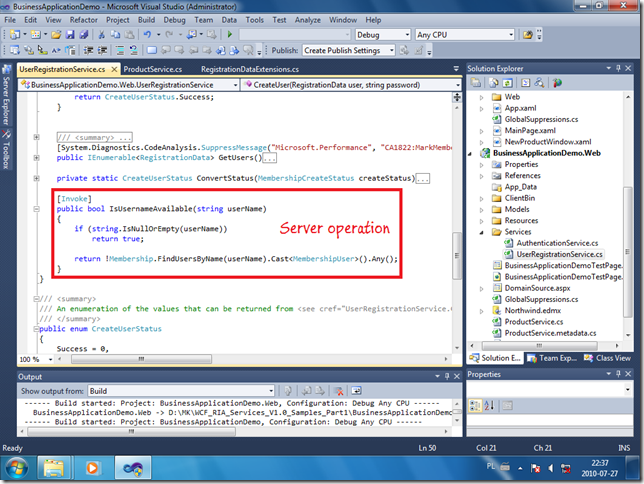

Now, you can very easily perform async validation.  The RIA Services Entity class has the ValidationErrors collection to manipulate the errors at any time. When you call Add, Remove, or Clear on the collection, it translates that into the necessary INotifyDataErrorInfo events. Simply modifying the collection will result in the UI showing the updated errors. Jeff Handley writes about it here. BTW, his async validation example contains the CustomValidation attribute which is different approach than you see below.

03_AsyncValidation_01_B - mod 03_AsyncValidation_02 - mod 03_AsyncValidation_01_A - mod 03_AsyncValidation_03

Some good links about validation

2. ConflictsExamples

Support for LinqToSql classes is now only available in the WCF RIA Services Toolkit

Resolve methods for resolving conflicts in different types of DALs are not  supported in this release of WCF RIA Services.

I have added second version of my example with concurrency conflicts - with Entity Framework.

05_RoundTripping_01 - mod

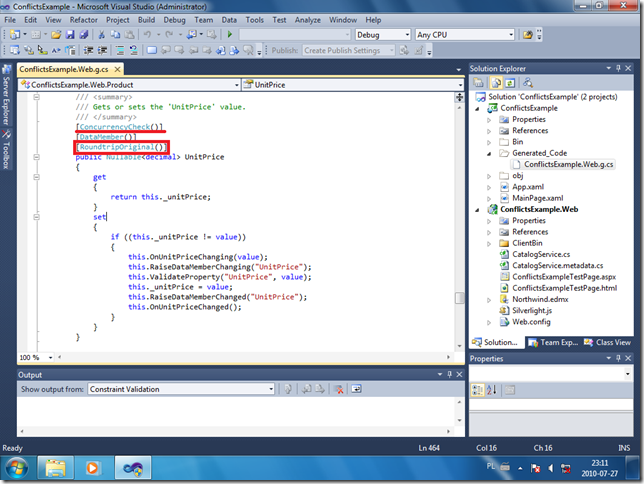

In the current release, the entire original entity is not sent to the server for concurrency checks any more. Now, you can specify which members are sent to the server by marking them with the RoundtripOriginal attribute. In addition, any members that are marked with the ConcurrencyCheck attribute or the TimeStamp attribute are automatically sent to the server.

05_RoundTripping_02 - mod 05_RoundTripping_03 - mod 05_RoundTripping_04 - mod

3. WindowsAuthentication

4. HttpsExample

5. CrossDomainExample

6. RIAServicesLibrariesDemo

7. MultipleDomainContextsExamples



All samples from part one you can download here

Useful links

Start, doc & samples

MIX 10

Channel 9

Silverlight TV

TechEd 10

Silverlight 4 Hands on Labs

Blogs & Sites

Cheers and enjoy!!

Tuesday, July 6, 2010

Expression Blend 4: SketchFlow improvements

What’s new in SketchFlow, which is now distributed as part of Expression Studio 4 Ultimate ?

In Expression Blend 4, the MockupDemonstration sample contains new mockup controls which help you create prototypes quickly and easily. Mockup controls are templates that include common web and desktop controls.  They look like sketches, but are more interactive. You can enable them for any SketchFlow project.

01_SketchFlow_01 01_SketchFlow_02

There is a new pause toggle button in each frame of a SketchFlow Animation. When toggled on, this causes the SketchFlowAnimation to pause at that frame when playing back in the SketchFlow Player. In the SketchFlow Player, there is a play/pause button, too.

Expression Blend has new SketchFlowAnimationTrigger which responds to a frame change or the pausing or completion of a SketchFlow animation.

You can also apply TransitionEffect to a SketchFlow animation when the transition time is greater than 0.

01_SketchFlow_03

In the SketchFlow player you can now pan and resize the screens at runtime. A subtle border surrounds each screen that a user can click and drag to resize the screen. If the original dimensions or the resized area of the screen is larger than the viewing area, scrollbars appear.

The SketchFlow map is now accessed using the Map button, next to the Navigation tab. The map is opened as an overlay above the current screen.

01_SketchFlow_06

When using the Export to Word feature,  a new option has been added. Now you can export feedback in the Word document.

01_SketchFlow_04 01_SketchFlow_05

You can read about other new features (publish to SharePoint, convert feedback to TFS work items, SketchStyles, naming screens) here.

Conditional behaviors and the data store are very useful for prototyping, too.

Below are links that I recommend for learning new SketchFlow features

Thursday, July 1, 2010

Expression Blend 4: Improvements to Photoshop file import

In Expression Blend 4 some layer effects (Drop Shadow, Inner Shadow, Color Overlay, Outer Glow, Inner Glow, Gradient Overlay, Bevel & Emboss, Satin) can now be merged with their layers.

If a layer effect has been applied to a layer, the Layer effect icon appears next to the layer in the Import Adobe Photoshop File dialog box. A layer effect can be imported either by selecting the Flattened bitmap import option or by merging the layer with other layers.

01_PhotoshopImport_01 01_PhotoshopImport_02

Adam Kinney wrote a great post about importing art from Photoshop and making into Silverlight controls. You should read it!
